TECNA 7911 AC – 2.5 kVA

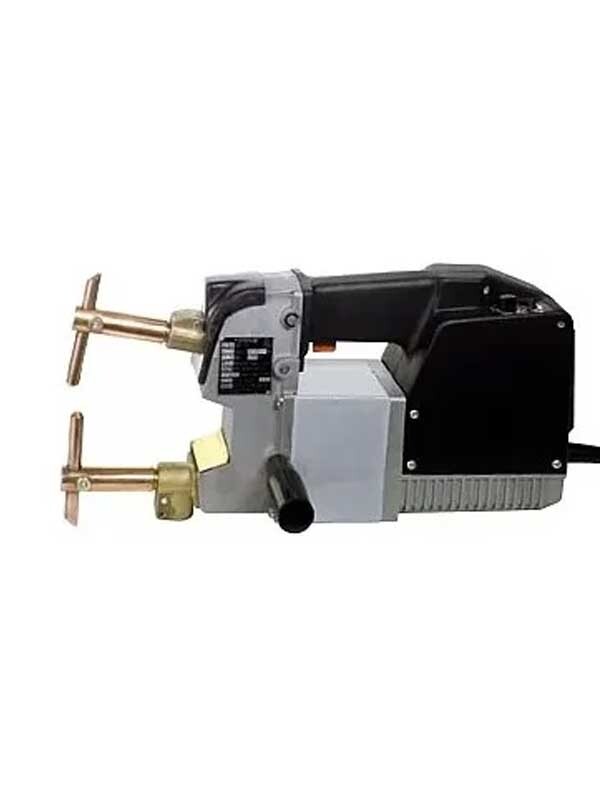

TECNA 7911 Portable Weld Gun
2.5 kVA | Air-Operated | Single-Phase AC
WSI Stock / Serial #: TECNA-7911
The TECNA 7911 is a 2.5 kVA, air-operated, single-phase AC portable weld gun. The TECNA 7911 handheld weld gun is a pulse spot welder suitable for up to 0.098 in. + 0.098 in. (2.5 mm + 2.5 mm) applications. Featuring an extensive range of optional arms and electrodes, the TECNA 7911 is perfect for auto body repair shops and maintenance shops.
- Model: TECNA 7911
- Gun type: Scissor-type
- Power @ 50% duty cycle: 2.5 kVA
- Power supply: Single-phase AC
- Max. weld current: 6,550 amps
- Max. weld force: 270 lbs.
- Max. electrode throat depth: 19.69
WSI maintains an inventory of new and used resistance welding equipment, including TECNA rocker arm spot welders at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.
Please submit the following form to request additional information.
Enter “TECNA-7911” on the following quote request form.
If you have any questions, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.
- Light and proven spot gun for car body repair and maintenance/preassembly works in the industry.
- Synchronous built-in electronic timer with SCR from 2 to 65 cycles.
- The compensation circuit starts the timer only when there is a proper passage of current, which enables to perform on oxidized sheets, on surfaces with paint residues, or on black sheets.
- Current control with phase-shift adjustment to carry out difficult welds, on very thin thickness, on rods with reduced diameter, on stainless steel sheets, and similar.
- Additional arm couplings to provide larger openings between arms.
- A built-in differential pressure switch operates the timer when the electrode force is correct.
- All transformers are coated with F-class insulation material that does not dry out and become brittle. Insulation test performed at 4000 V.
- To be used with arms item 7401 / 7402 / 7403 / 7404 / 7405 / 7406 / 7407 (on request).
Pulsation weld time control is available (version P).
*May be supplied capable of operating on other voltages/frequencies. Please ask for details.
The TECNA 7911 is a 2.5 kVA, air-operated, single-phase AC portable weld gun. The TECNA 7911 handheld weld gun is a pulse spot welder suitable for up to 0.098 in. + 0.098 in. (2.5 mm + 2.5 mm) applications. Featuring an extensive range of optional arms and electrodes, the TECNA 7911 is perfect for auto body repair shops and maintenance shops.
- Model: TECNA 7911
- Gun type: Scissor-type
- Power @ 50% duty cycle: 2.5 kVA
- Power supply: Single-phase AC
- Max. weld current: 6,550 amps
- Max. weld force: 270 lbs.
- Max. electrode throat depth: 19.69
INVENTORY:
Additional information
| Gun Type | Scissor-type |
|---|---|
| kVA | 2.5 kVA |
| Power Supply | Single-Phase AC |
| Max. Weld Current | 6,500 amps |
| Max. Weld Force | 270 lbs. |
| Max. Electrode Throat Depth | 19.69 in. |
TECNA Stainless Steel Cable Retractor Balancer Standard Features
- Rugged construction, cast aluminum body.
- Stainless steel rope
- Adjustable capacity
- Auxiliary safety suspension
- Adjustable stroke limiting device
- Cable guide in antifriction material
- Inert spring drum assembly
- Polyamides thimble
- Models 9320 – 9323: Safety device against load dropping due to the spring breakage (>3kg).
* Features may vary, and are subject to change without notice. Please contact your TECNA representative to request a quote.
TECNA Stainless Steel Cable Retractor Balancer Selection Guide
Retractor tool balancers use a spring mechanism to keep the tool hanging slightly below the balancer when in the rest position. To use the tool, the operator pulls down to unwind a cable. When the operator’s task is complete, the tool can again be safely returned to the rest position. While in use, the operator will feel a slight pull from the retractor, as the tool is under continuous pressure from a spring.
TECNA standard retractor tool balancers feature a nylon or aluminum housing, and suspend the tool on a stainless steel wire rope. Optional accessories include:
- Accessory unit with air hose 0.32 / 0.39 in. (8 – 10 mm)
- Accessory unit with air hose 0.43 / 0.63 in. (11 – 16 mm)
NOTE: Available for certain models, please contact a customer service representative for help selecting the right product for your application.
Balancers models 9336 – 9350 are equipped with a stop device that allows the load to be stopped in intermediate positions of the stroke, about every 3.94 in. (100 mm). The stop device can be activated and deactivated at the operator’s choice.
