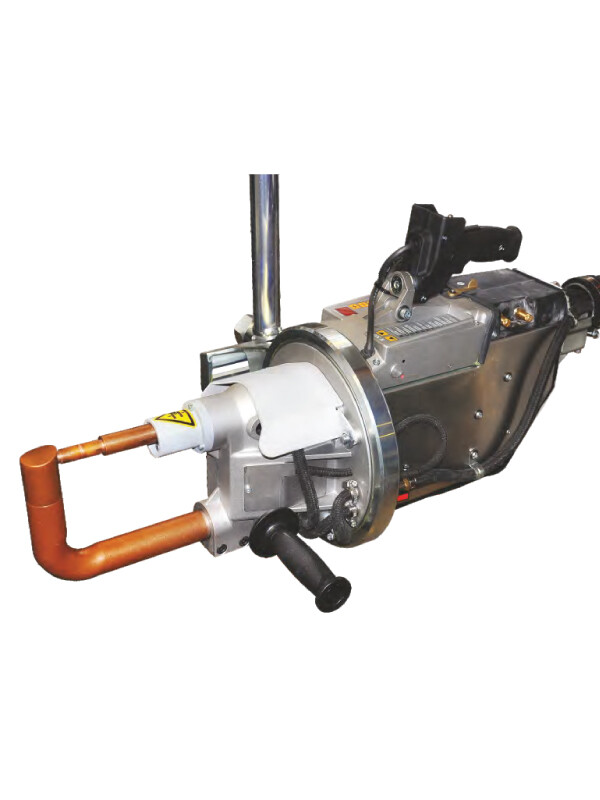

TECNA 3323 C-Type Suspended Weld Gun

23 kVA | Air-Operated | Single-Phase AC

844-44-TECNA
216-475-5629
EMAIL
QUOTE

WSI Stock / Serial #: TECNA-3323

The TECNA 3323 is a 23 kVA, single-phase AC, c-type spot weld gun. This versatile and powerful air-operated suspended spot welding gun has arms from 7.48″ – 31.50″ with custom arm holder configurations available.

  • Model: TECNA 3322
  • Gun type: C-type
  • Power @ 50% duty cycle:  23 kVA
  • Power supply:  Single-phase AC
  • Max. weld current: 21,000 amps
  • Max. weld force: 254 lbs.
  • Max. electrode throat depth: 31.50

WSI maintains an inventory of new and used resistance welding equipment, including TECNA rocker arm spot welders at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

QUOTE REQUESTFeaturesSpecifications

Please submit the following form to request additional information.

Enter “TECNA-3323” on the following quote request form.

If you have any questions, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs
    Equipment Request:
    TECNA Model / Serial Number:
    * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    • Pneumatically-operated suspended gun with integrated TE300, TE470, or TE480 microprocessor-based welding controls.
    • Intelligent design, small dimensions, and high welding capacity deliver maximum productivity.
    • High electrical efficiency.
    • Totally-enclosed unit includes rubber bumpers in some areas, for safe and easy operation.
    • Accurate maneuverability at any angle is guaranteed by gyro suspension mounted on sealed bearings, coupled with a TECNA balancer.
    • Rotation lock allows the locking of multiple axes of motion.
    • Accepts a broad range of standard and special arms to accommodate special applications.
    • Chromium copper electrode holders offer long life in a production environment and are designed for use at angles of up to 30°. Ask about WSI-exclusive 30-degree arms!
    • Long, adjustable welding stroke enables welding in difficult-to-reach areas, including welding reinforcements and ribs.
    • Temporary extra stroke (retraction stroke) allows for reaching into tough spots.
    • Water-cooled transformer, with epoxy resin-coated windings for long life.
    • Water-cooled arms, electrode holders, and electrodes for best performance and maximum use.
    • SCR (Silicon-Controlled Rectifier) is insulated from the cooling circuit and includes a thermal cutoff switch for overheating protection.
    • Lube-free chromium-plated cylinder and shaft offer a long service life in a production environment.
    • Lube-free pneumatic circuit eliminates oil mist in your shop.
    • Trigger handle safety prevents accidental initiation.
    • Trigger handle controls enable selection between 2 or 4 welding programs, as well as Stage 1 ‘weld / no-weld’ function.
    • The power supply cable is replaceable without opening up the welder!

    *May be supplied capable of operating on other voltages/frequencies. Please ask for details.
