TECNA 3324 AC – 23 kVA

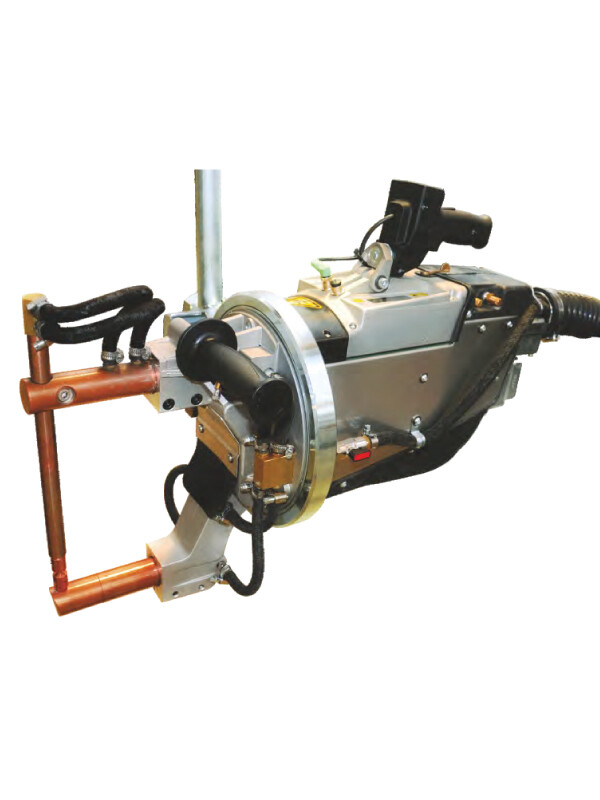

TECNA 3324 Scissor-Type Suspended Weld Gun

23 kVA | Air-Operated | Single-Phase AC

844-44-TECNA
216-475-5629
EMAIL
QUOTE

WSI Stock / Serial #: TECNA-3324

The TECNA 3324 is a 23 kVA, single-phase AC, scissor-type spot weld gun. This versatile and powerful air-operated suspended spot welding gun has arms from 7.48″ – 25.59″ with custom arm holder configurations available.

  • Model: TECNA 3324
  • Gun type: Scissor-type
  • Power @ 50% duty cycle:  23 kVA
  • Power supply:  Single-phase AC
  • Max. weld current: 16,500 amps
  • Max. weld force: 254 lbs.
  • Max. electrode throat depth: 25.59
