TECNA 2920 – 56 kVA MFDC

TECNA 2920 Robot Weld Gun

56 kVA | X-Type Light | MFDC

844-44-TECNA
216-475-5629
EMAIL
QUOTE

WSI Stock / Serial #: TECNA-2920

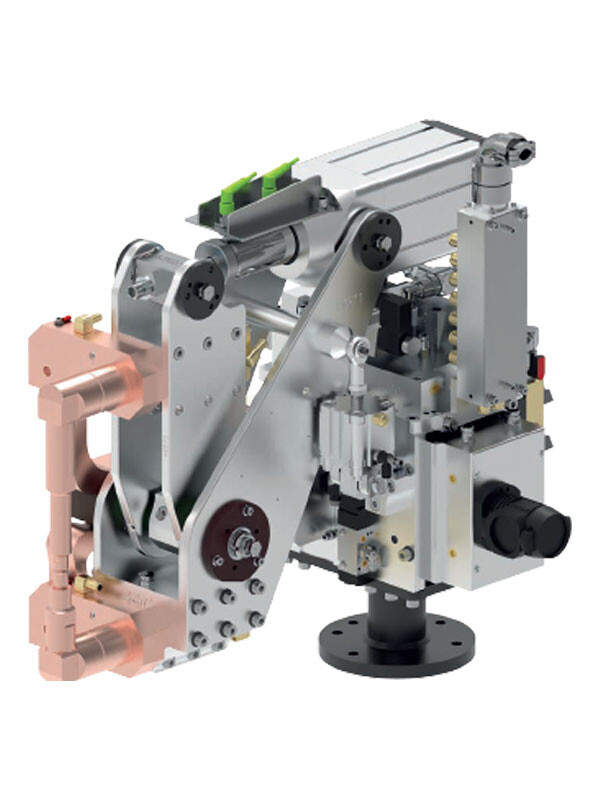

The TECNA 2920 is a 56 kVA x-type light MFDC weld gun (can be configured with available 75 kVA AC transformer). The 2920 robot spot welding gun is built strong and light to create a versatile tool with multiple configurations. The 2920 x-type gun features a pneumatic actuator, and is available with 11.81 in. / 13.78 in. / 15.75 in. / 17.72 in. (300 mm / 350 mm / 400 mm / 450 mm) arms for increased flexibility.

  • Model: TECNA 2920
  • Gun type: X-type
  • Power @ 50% duty cycle:  56 kVA
  • Power supply:  MFDC
  • Max. weld current: 39,600 amps
  • Max. weld force: 717.14 lbs.
  • Max. electrode throat depth: 27.56 in.

WSI maintains an inventory of new and used resistance welding equipment, including TECNA spot weld guns at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.
