TECNA 7915 – 6 kVA Pedestal Weld Gun

TECNA 7915 Pedestal Spot Weld Gun

6 kVA | Air-Operated | Water-Cooled Arms

844-44-TECNA
216-475-5629
EMAIL
QUOTE

TECNA 7915 Pedestal Weld Gun

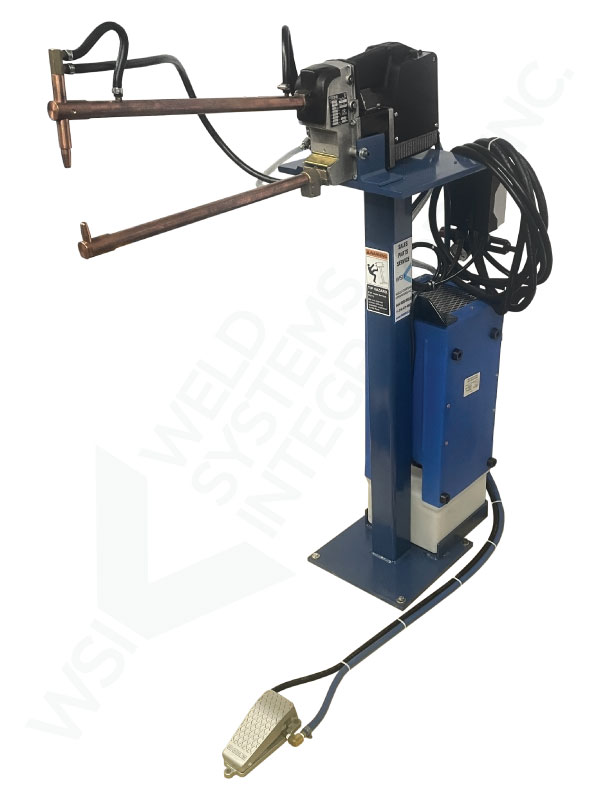

WSI-TECNA 7915 – 6 kVA pedestal spot weld gun. This custom, combination portable spot weld gun / pedestal welder is a replacement for Miller Electric spot weld guns no longer produced (LMSW-52 and LMSW-52T). Features a TECNA model 7915, 6 kVA, air-operated, weld gun, pedestal mounted with installed DYNAFLUX VH1000 V/G cooling system. The 7915 pedestal comes with customer choice of water-cooled arm lengths, and a variety of electrodes. The WSI-TECNA 7915 pedestal is perfect of light-duty spot welding applications.

  • Model: WSI-TECNA 7195 Pedestal
  • Power @ 50% duty cycle:  6 kVA
  • Power supply:  Single-phase AC
  • Max. weld current: 6,550 amps
  • Max. weld force: up to 269 lbs. (4.9 in. arms)
  • Electrode throat depth: 4.9 – 19.7 in. (125 – 500 mm)
  • Water cooling: Dynaflux VH1000 V/G Cooling System

WSI maintains an inventory of new and used resistance welding equipment, including TECNA spot weld guns at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

QUOTE REQUESTFeaturesSpecifications

Please submit the following form to request additional information.

Enter “TECNA-7915-Pedestal” on the following quote request form.

If you have any questions, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs
    Equipment Request:
    TECNA Model / Serial Number:
    * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    • Light-duty production
    • Spot welding only
    • Selectable 5 in., 10 in., 14 in. and 20″ arms
    • Cold rolled and galvanized steel:  16 gauge and thinner
    • Stainless steel:  22 gauge and thinner
    • Aluminum: NOT RECOMMENDED
    • 220V / 60 Hz / single-phase AC
    • Customer choice of water-cooled arms
    • Compressed air supply: Minimum 80 PSI, clean and dry air
    • Water cooling: Included Dynaflux VH1000 V/G
    • Weld force: 270 – 85.43 lbf. (120 – 38 daN)
    • Synchronous built-in electronic timer with SCR from 2 to 65 cycles
    • Fully water cooled – 0.24 in. (6 mm) water connection
    WSI-TECNA 7915 Pedestal Weld Gun | TECNADirect
    QUOTE REQUEST

    WSI-TECNA 7915 – 6 kVA pedestal spot weld gun. This custom, combination portable spot weld gun / pedestal welder is a replacement for Miller Electric spot weld guns no longer produced (LMSW-52 and LMSW-52T). Features a TECNA model 7915, 6 kVA, air-operated, weld gun, pedestal mounted with installed DYNAFLUX VH1000 V/G cooling system. The 7915 pedestal comes with customer choice of water-cooled arm lengths, and a variety of electrodes. The WSI-TECNA 7915 pedestal is perfect of light-duty spot welding applications.

    • Model: WSI-TECNA 7195 Pedestal
    • Power @ 50% duty cycle:  6 kVA
    • Power supply:  Single-phase AC
    • Max. weld current: 6,550 amps
    • Max. weld force: up to 269 lbs. (4.9 in. arms)
    • Electrode throat depth: 4.9 – 19.7 in. (125 – 500 mm)
    • Water cooling: Dynaflux VH1000 V/G Cooling System

    INVENTORY:

    1 in stock

    Additional information

    Gun Type

    Scissor-type
    kVA

    6 kVA
    Power Supply

    Single-Phase AC
    Max. Weld Current

    6,500 amps
    Max. Weld Force

    270 lbs.
    Max. Electrode Throat Depth

    19.69 in.

    TECNA Stainless Steel Cable Retractor Balancer Standard Features

    • Rugged construction, cast aluminum body.
    • Stainless steel rope
    • Adjustable capacity
    • Auxiliary safety suspension
    • Adjustable stroke limiting device
    • Cable guide in antifriction material
    • Inert spring drum assembly
    • Polyamides thimble
    • Models 9320 – 9323: Safety device against load dropping due to the spring breakage (>3kg).

    * Features may vary, and are subject to change without notice. Please contact your TECNA representative to request a quote.

    TECNA Stainless Steel Cable Retractor Balancer Selection Guide

    Retractor tool balancers use a spring mechanism to keep the tool hanging slightly below the balancer when in the rest position. To use the tool, the operator pulls down to unwind a cable. When the operator’s task is complete, the tool can again be safely returned to the rest position. While in use, the operator will feel a slight pull from the retractor, as the tool is under continuous pressure from a spring.

    TECNA standard retractor tool balancers feature a nylon or aluminum housing, and suspend the tool on a stainless steel wire rope. Optional accessories include:

    • Accessory unit with air hose 0.32 / 0.39 in. (8 – 10 mm)
    • Accessory unit with air hose 0.43 / 0.63 in. (11 – 16 mm)

    NOTE:  Available for certain models, please contact a customer service representative for help selecting the right product for your application.

    Balancers models 9336 – 9350 are equipped with a stop device that allows the load to be stopped in intermediate positions of the stroke, about every 3.94 in. (100 mm). The stop device can be activated and deactivated at the operator’s choice.
