TECNA 7913 AC – 6 kVA

TECNA 7913 Gyroscopic Weld Gun

6 kVA | Air-Operated | Single-Phase AC

844-44-TECNA
216-475-5629
EMAIL
QUOTE

WSI Stock / Serial #: TECNA-7913

The TECNA 7913 is a 6 kVA, hand-operated, single-phase AC gyroscopic weld gun. The TECNA 7913 features gyroscopic suspension for enhanced maneuverability. Suitable for welding two pieces of 0.079 in. (2 mm) mild steel, the 7913 weld gun offers extensive range of optional arms and electrodes, perfect for auto body repair shops and maintenance shops.

  • Model: TECNA 7913
  • Gun type: Scissor-type
  • Power @ 50% duty cycle:  6 kVA
  • Power supply:  Single-phase AC
  • Max. weld current: 6,550 amps
  • Max. weld force: 270 lbs.
  • Max. electrode throat depth: 19.69

WSI maintains an inventory of new and used resistance welding equipment, including TECNA rocker arm spot welders at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

QUOTE REQUESTFeaturesSpecifications

Please submit the following form to request additional information.

Enter “TECNA-7913” on the following quote request form.

If you have any questions, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs
    Equipment Request:
    TECNA Model / Serial Number:
    * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    • Welds right out of the box
    • 220V / 60 Hz / single-phase AC
    • Customer choice of water-cooled arms
    • Can weld up to 2 pieces of 0.079 in. (2 mm) steel
    • Weld force: 270 – 85.43 lbf. (120 – 38 daN)
    • Throat depth: 5.91 – 19.69 in. (150 – 500 mm)
    • Gyroscopic suspension for enhanced maneuverability
    • Synchronous built-in electronic timer with SCR from 2 to 65 cycles
    • Weighs 35 lbs. (16 kg) plus arms
    • Shop air required
    • Fully water cooled – 0.24 in. (6 mm) water connection
    • Recommended tool balancers: 9357 and 9358
    • Pulsation weld time control available (P version)

    *May be supplied capable of operating on other voltages/frequencies. Please ask for details.

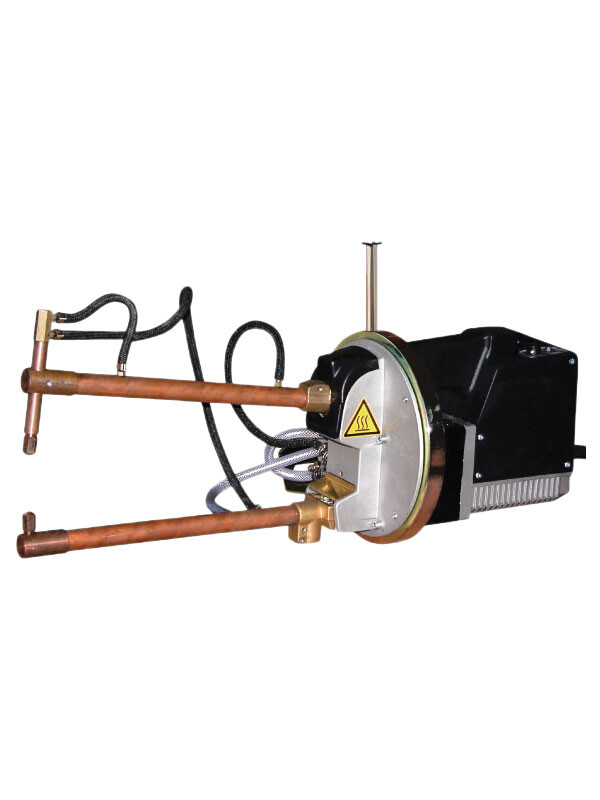

    TECNA 7913 Gyroscopic Air-Operated Weld Gun | TECNADirect.com
    QUOTE REQUEST

    The TECNA 7913 is a 6 kVA, hand-operated, single-phase AC gyroscopic weld gun. The TECNA 7913 features gyroscopic suspension for enhanced maneuverability. Suitable for welding two pieces of 0.079 in. (2 mm) mild steel, the 7913 weld gun offers extensive range of optional arms and electrodes, perfect for auto body repair shops and maintenance shops.

    • Model: TECNA 7913
    • Gun type: Scissor-type
    • Power @ 50% duty cycle:  6 kVA
    • Power supply:  Single-phase AC
    • Max. weld current: 6,550 amps
    • Max. weld force: 270 lbs.
    • Max. electrode throat depth: 19.69

    INVENTORY:

    Additional information

    Gun Type

    Scissor-type
    kVA

    6 kVA
    Power Supply

    Single-Phase AC
    Max. Weld Current

    6,500 amps
    Max. Weld Force

    270 lbs.
    Max. Electrode Throat Depth

    19.69 in.
    Typically IN-STOCK

    YES

    TECNA Stainless Steel Cable Retractor Balancer Standard Features

    • Rugged construction, cast aluminum body.
    • Stainless steel rope
    • Adjustable capacity
    • Auxiliary safety suspension
    • Adjustable stroke limiting device
    • Cable guide in antifriction material
    • Inert spring drum assembly
    • Polyamides thimble
    • Models 9320 – 9323: Safety device against load dropping due to the spring breakage (>3kg).

    * Features may vary, and are subject to change without notice. Please contact your TECNA representative to request a quote.

    TECNA Stainless Steel Cable Retractor Balancer Selection Guide

    Retractor tool balancers use a spring mechanism to keep the tool hanging slightly below the balancer when in the rest position. To use the tool, the operator pulls down to unwind a cable. When the operator’s task is complete, the tool can again be safely returned to the rest position. While in use, the operator will feel a slight pull from the retractor, as the tool is under continuous pressure from a spring.

    TECNA standard retractor tool balancers feature a nylon or aluminum housing, and suspend the tool on a stainless steel wire rope. Optional accessories include:

    • Accessory unit with air hose 0.32 / 0.39 in. (8 – 10 mm)
    • Accessory unit with air hose 0.43 / 0.63 in. (11 – 16 mm)

    NOTE:  Available for certain models, please contact a customer service representative for help selecting the right product for your application.

    Balancers models 9336 – 9350 are equipped with a stop device that allows the load to be stopped in intermediate positions of the stroke, about every 3.94 in. (100 mm). The stop device can be activated and deactivated at the operator’s choice.
