TECNA 7903 Portable Weld Gun

6 kVA | Hand-Operated | Single-Phase AC

844-44-TECNA
216-475-5629
EMAIL
QUOTE

WSI Stock / Serial #: TECNA-7903

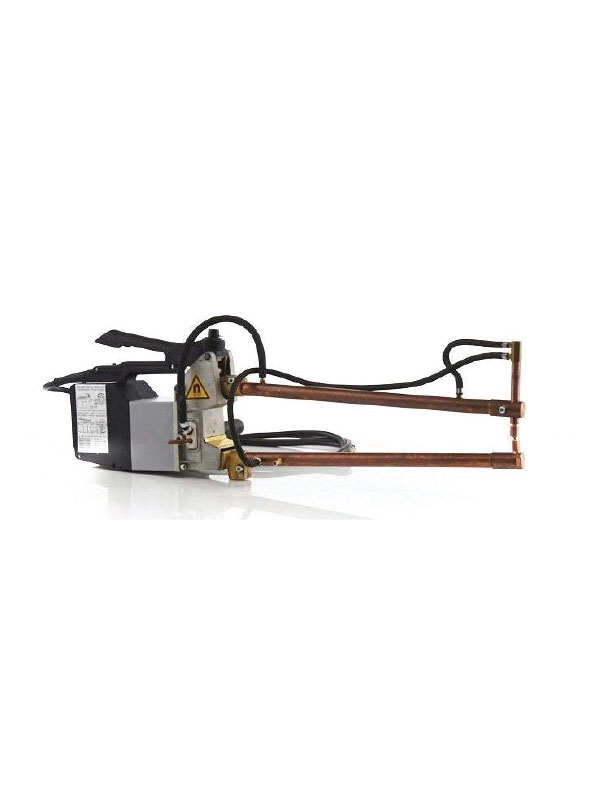

The TECNA 7903 is a 6 kVA, hand-operated, single-phase AC portable weld gun. The TECNA 7903 weld gun is ready to weld right out of the box and is suitable for two pieces of 0.079 in. (2 mm) mild steel. Featuring customer choice of water-cooled arm lengths, and a variety of electrodes, the TECNA 7903 is the perfect portable spot welder for auto body repair shops, and maintenance shops.

  • Model: TECNA 7903
  • Gun type: Scissor-type
  • Power @ 50% duty cycle:  6 kVA
  • Power supply:  Single-phase AC
  • Max. weld current: 5,750 amps
  • Max. weld force: 270 lbs.
  • Max. electrode throat depth: 19.69
  • Recommended tool balancers: TECNA 9356 and 9357

WSI maintains an inventory of new and used resistance welding equipment, including TECNA rocker arm spot welders at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

QUOTE REQUESTFeaturesSpecifications

Please submit the following form to request additional information.

Enter “TECNA-7903” on the following quote request form.

If you have any questions, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs
    Equipment Request:
    TECNA Model / Serial Number:
    * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    • Welds right out of the box
    • 220V / 60 Hz / single-phase AC
    • Customer choice of water-cooled arms
    • Can weld up to 2 pieces of 0.079 in. (2 mm) steel
    • Weld force: 270 – 85.43 lbf. (120 – 38 daN)
    • Throat depth: 5.91 – 19.69 in. (150 – 500 mm)
    • Easily mounts to bench
    • Synchronous built-in electronic timer with SCR from 2 to 65 cycles
    • Weighs 26 lbs. (12 kg) plus arms
    • No shop air required
    • Fully water cooled – 0.24 in. (6 mm) water connection
    • Recommended tool balancers: TECNA 9356 and 9357

    *May be supplied capable of operating on other voltages/frequencies. Please ask for details.
