TECNA SENSUM – 6158NX / 486

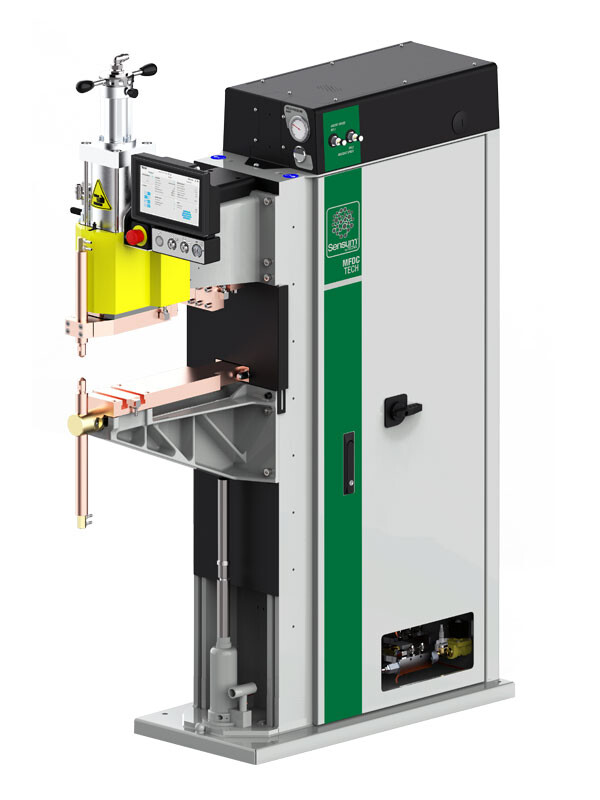

200 kVA MFDC Press-Type Spot Welder
WSI Stock / Serial #: TECNA-6158NX-486
The TECNA 6158NX / 486 is a 200 kVA MFDC press-type spot welder featuring SENSUM, TECNA’s groundbreaking revolution in spot and projection welding technology. For the first time, a complete weld cycle control plotting function is integrated directly into the inverter, giving you unmatched precision and full, real-time feedback. With SENSUM, users can monitor and verify weld parameters millisecond by millisecond, visualize results in full synergy on the machine HMI, monitor and control your machines remotely from computers or mobile devices, enable full maintenance and service access from anywhere.
- Model: 6158NX/486 for spot and projection welding
- kVA: 200kVA at 50%
- Power supply: MDFC
- Max. weld current: 64kA.
- Thermal current capacity at 100%: 13kA
- Max. weld force: 2700 lbs. (1242 daN)
- Max. throat depth: 16.22 in. projection plates (412 mm)
- Longer throat models also available for spot welding
- Standard controls: TECNA SENSUM
Product Flyer (PDF) | Product Manual (PDF)
WSI maintains an inventory of new and used resistance welding equipment, including TECNA spot weld guns at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.
Please submit the following form to request additional information.
Enter “TECNA-6158NX / 486” on the following quote request form.
If you have any questions, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.
| Specifications – TECNA SENSUM – 6158NX / 486 | ||
|---|---|---|
| Nominal power at 20% | kVA | 316 |
| Nominal power at 50% | kVA | 200 |
| Short circuit current | kA | 64 |
| Thermal current 100% | kA | 13 |
| No load secondary voltage | V | 10.4 |
| Supply voltage 50Hz* | V | 400 |
| Min. gap | in. (mm) | 6.89 in. (175 mm) |
| Max. gap | in. (mm) | 18.70 in. (475 mm) |
| Depth spot | in. (mm) | 21.26 in. (540 mm) |
| Depth projections | in. (mm) | 16.34 in. (415 mm) |
| Max. electrode force 6 bar (standard) | lbs. (daN) | 1654.59 lbs. (736 daN) |
| Max. electrode force 6 bar (opt. 6135) | lbs. (daN) | 2792.13 lbs. (1242 daN) |
| Max. stroke | in. (mm) | 3.94 in. (100 mm) |
| Double stroke (standard) | in. (mm) | 0 – 3.15 in. (0 – 80 mm) |
| Water cooling | l/min | 12 |
| Net weight (approx.) | lbs. (kg) | 1212.54 lbs. (550 mm) |
| Ø arms | in. (mm) | 2.36 in. (60 mm) |
| Ø electrode-holders | in. (mm) | 1.26 in. (32 mm) |
| Electrode tape Ø** | in. (mm) | 0.75 in. (19.05 mm) |
- Medium frequency welders, designed to obtain high quality welding.
- Modular design of mechanical structure, arms, brackets, cylinders.
- Cylinder with chrome plated stem for heavy duty works and long life; adjustable anti-rotation device.
- Lubrication free pneumatic components to eliminate oil mist and to protect the environment.
- Adjustable double-stroke cylinder with key control.
- Electrodes descent without pressure for both maintenance and set-up.
- Built-in compressed air filter unit and tank. Compressed air disconnection device.
- Water-cooled transformer, plates, electrode-holders and electrodes; transformer with epoxy resin coated windings.
- Two stage electric foot control for clamping and welding pieces only if correctly positioned.
- Pre-setting for additional double stage electric foot switch connection for the direct recalling of a different welding program.
- Arranged for all models: two-hand safety control with timer and removable key selector, assuring the best safety. The two-hand control device is standard on projection models only (it is available upon request on spot welder models).
- Emergency push-button to stop the machine immediately.
- Protection with safety module.
- Flow-switch which stops the machine if the cooling water does not flow.
- Clean design.
- Touch screen interface.
| 61C01 | DS 1242daN cylinder w/o adjustable double stroke |
| 61C02 | DS 1242daN cylinder with double adjustable stroke 150 stroke |
| 61C35 | DS 1242daN Cylinder |
| 61C35 / 150 | DS 1242daN cylinder, stroke 150 |
| 61C36 | MS Cylinder w/o adjustable double stroke |
| 61C36 / 150 | MS cylinder s/double stroke adjustable stroke 150 |
| 61C45 | MS Cylinder 150 stroke |
| 61E01 | Dual control with emergency |
| 61E02 | Optical dual control |
| 61E03 | Optical dual control with emergency |
| 61E04 | Pedal second program 1.4m with bracket |
| 61E04/1 | Pedal second program 2.4m with bracket |
| 61E32 | Rotary selector |
| 61P01 | Monitored redundant pneumatics w/low force approach (MS cyl) |
| 61P02 | Electronic pressure regulator |
| 61P37 | Monitored redundant pneumatics |
| 61P38 | Low force approach |
| 61P40 | Proportional valve with error feedback |
| 61P44 | DS exclusion with tap |
| 61P44/1 | DS exclusion with solenoid valve |
| 61Q01 | Position Sensor and Load Cell |
| 61Q02 | Pyrometer |
| 61Q42 | Position sensor |
| 61Q47 | Load cell |
| 61W34 | OUT with flow meter and temperature sensor |
| 61W49 | Spark Plug Solenoid Valve |
