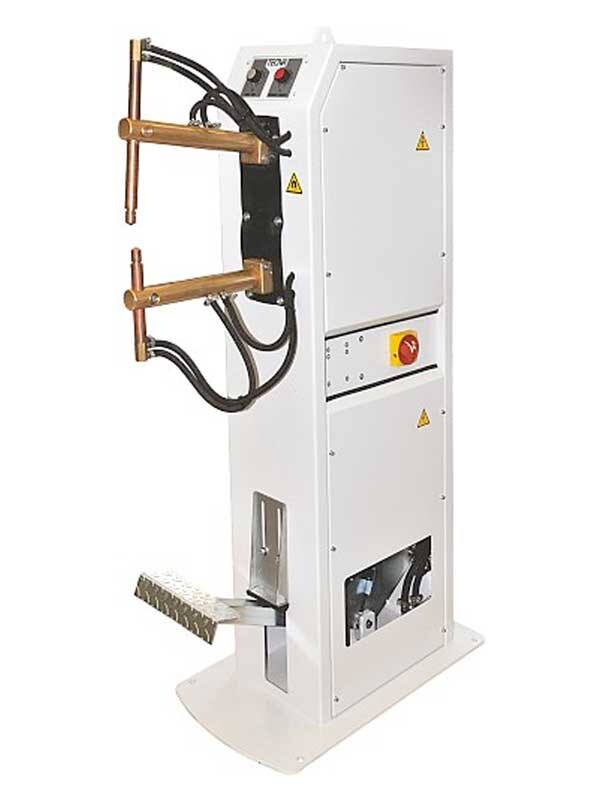

TECNA 6011 Rocker Arm Spot Welder
25 kVA | Foot-Operated | MFDC / Inverter
WSI Stock / Serial #: TECNA-6011
The TECNA 6011 is a 25 kVA, foot-operated, MFDC / Inverter rocker arm spot welder. The advantages of inverter technology include greater welding quality and precision, more efficient use of electricity, smaller size, and less electrical loss due to impedance (power savings). The 6011 features adjustable arms, electrode stroke, and force. The chrome-copper electrode holders are designed for straight and angled fittings.
- Model: TECNA 6011
- Power @ 50% duty cycle: 25 kVA
- Power supply: MFDC / Inverter
- Max. weld current: 12,000 amps
- Max. weld force: 337 lbs.
- Max. electrode throat depth: 27.56 in.
- Max. projection plate throat depth: —
WSI maintains an inventory of new and used resistance welding equipment, including TECNA rocker arm spot welders at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.
Please submit the following form to request additional information.
Enter “TECNA-6010” on the following quote request form.
If you have any questions, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.
- Arms adjustable in length allowing better working flexibility.
- Chrome-copper electrode holders for long life and heavy-duty service, designed for straight and angled fitting.
- Adjustable electrode stroke.
- Epoxy resin-coated transformer.
- Adjustable electrode force; a microswitch starts the welding cycle when the desired pre-set value is reached.
- The foot pedal is adjustable in length.
*May be supplied capable of operating on other voltages/frequencies. Please ask for details.
