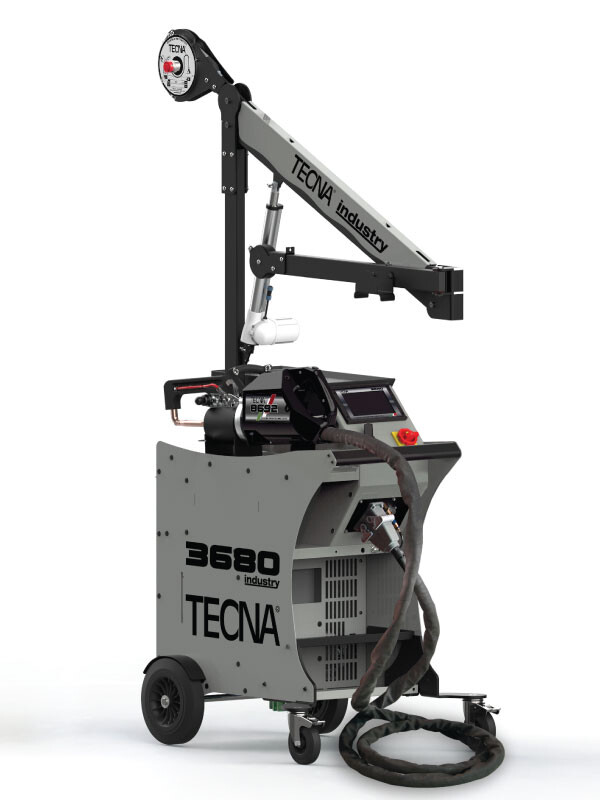

TECNA 3680Si – Industrial Welding Station

  • Improved TECNA SMART MODE that will automatically adjust the welding parameters, weld by weld
  • New powerful 8692 patented gun, capable of 15,500 amps and 1,450 force lbs.
  • New motorized suspension arm
  • New Bowden balancer retractor with improved smoothness
  • Already predisposed for robot/cobot integration
  • Supply voltage: 400 VAC x 3 – 50 Hz | 220 VAC x 3 – 50 / 60 Hz
  • Main fuses: 32 A – delayed | 50 A – delayed
  • Welding current: 15.500 A
  • Content of the water tank: 25 l
  • Total weight without accessories: 363.76 lbs. (165 kg)

WSI maintains an inventory of new and used resistance welding equipment, including TECNA spot weld guns at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

QUOTE REQUESTSpecificationsVideoDrawingHSS and UHSSArms and Electrodes

Please submit the following form to request additional information.

Enter “TECNA-3680Si” on the following quote request form.

If you have any questions, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs
    Equipment Request:
    TECNA Model / Serial Number:
    * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    Technical Features
    Supply voltage 400 VAC x 3 – 50 Hz | 220 VAC x 3 – 50 / 60 Hz
    Main fueses 32 A – delayed 50 A – delayed
    Welding current 15.500 A
    Content of the water tank 6.6 gallons (25 liters)
    Dimensions (H / W / D) 91.73 / 28.35 / 38.58 in. (233 / 72 / 98 cm)
    Total weight (no accessories) 364 lbs. (165 kg)
    “C” gun 8692 8692
    Cables length 13.12 ft. (4 m) 19.69 ft. (6 m)
    Nominal power 50% ED 22 kVA
    Maximum welding power 129 kVA
    Thermal current 100% 2.05 kA
    No load secondary voltage 7.7 V
    Max. electrode force 1382.58 lbf. (615 daN) – 8 bar
    Gun weight without arms 23.81 lbs. (10.8 kg)

    TECNA 3680Si Industrial Welding Station Drawing / Dimensions | Weld Systems Integrators

    TECNA 3680Si Industrial Welding Station HSS and UHSS | Weld Systems Integrators

    TECNA 3680Si Industrial Welding Station Arms and Electrodes | Weld Systems Integrators

    TECNA 3680Si Industrial Weld Station | Weld Systems Integrators
    QUOTE REQUEST

    TECNA 3680Si – Industrial Welding Station

    • Improved TECNA SMART MODE that will automatically adjust the welding parameters, weld by weld
    • New powerful 8692 patented gun, capable of 15,500 amps and 1,450 force lbs.
    • New motorized suspension arm
    • New Bowden balancer retractor with improved smoothness
    • Already predisposed for robot/cobot integration
    • Supply voltage: 400 VAC x 3 – 50 Hz | 220 VAC x 3 – 50 / 60 Hz
    • Main fuses: 32 A – delayed | 50 A – delayed
    • Welding current: 15.500 A
    • Content of the water tank: 25 l
    • Total weight without accessories: 363.76 lbs. (165 kg)

    INVENTORY:

    Additional information

    Gun Type

    C-type
    kVA

    22 kVA
    Power Supply

    Single-Phase AC
    Max. Weld Force

    1,382 lbs.

    TECNA Stainless Steel Cable Retractor Balancer Standard Features

    • Rugged construction, cast aluminum body.
    • Stainless steel rope
    • Adjustable capacity
    • Auxiliary safety suspension
    • Adjustable stroke limiting device
    • Cable guide in antifriction material
    • Inert spring drum assembly
    • Polyamides thimble
    • Models 9320 – 9323: Safety device against load dropping due to the spring breakage (>3kg).

    * Features may vary, and are subject to change without notice. Please contact your TECNA representative to request a quote.

    TECNA Stainless Steel Cable Retractor Balancer Selection Guide

    Retractor tool balancers use a spring mechanism to keep the tool hanging slightly below the balancer when in the rest position. To use the tool, the operator pulls down to unwind a cable. When the operator’s task is complete, the tool can again be safely returned to the rest position. While in use, the operator will feel a slight pull from the retractor, as the tool is under continuous pressure from a spring.

    TECNA standard retractor tool balancers feature a nylon or aluminum housing, and suspend the tool on a stainless steel wire rope. Optional accessories include:

    • Accessory unit with air hose 0.32 / 0.39 in. (8 – 10 mm)
    • Accessory unit with air hose 0.43 / 0.63 in. (11 – 16 mm)

    NOTE:  Available for certain models, please contact a customer service representative for help selecting the right product for your application.

    Balancers models 9336 – 9350 are equipped with a stop device that allows the load to be stopped in intermediate positions of the stroke, about every 3.94 in. (100 mm). The stop device can be activated and deactivated at the operator’s choice.
