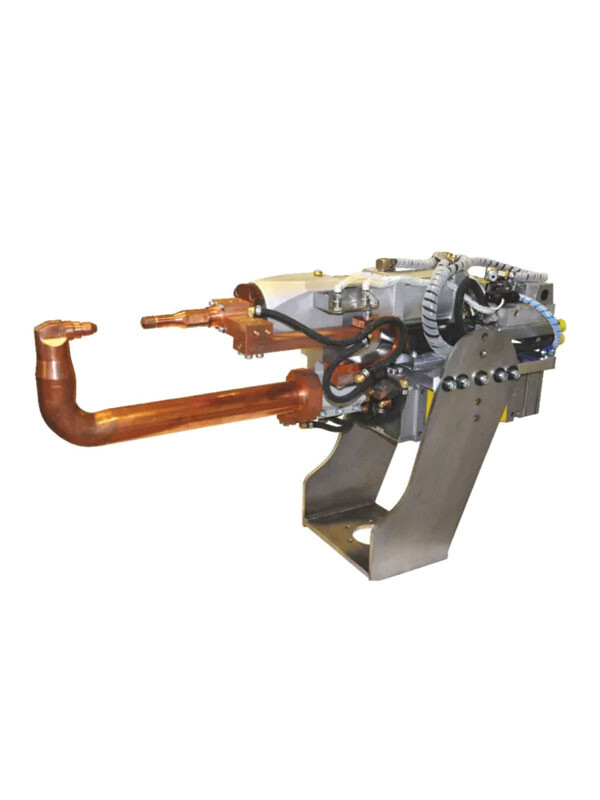

TECNA 2915 Robot Weld Gun

56 kVA | C-Type Standard | MFDC

844-44-TECNA
216-475-5629
EMAIL
QUOTE

WSI Stock / Serial #: TECNA-2915

The TECNA 2915 is a 56 kVA c-type standard MFDC weld gun (can be configured with available 90 kVA MFDC transformer) . The 2915 robot spot welding gun is built strong and light to create a versatile tool with multiple configurations. The 2915 c-type gun features a pneumatic actuator, and is available with 11.81 in. / 13.78 in. / 15.75 in. / 17.72 in. (300 mm / 350 mm / 400 mm / 450 mm) arms for increased flexibility.

  • Model: TECNA 2915
  • Gun type: C-type
  • Power @ 50% duty cycle:  56 kVA
  • Power supply:  MFDC
  • Max. weld current: 39,600 amps
  • Max. weld force: 1144.28 lbs.
  • Max. electrode throat depth: 27.56 in.

WSI maintains an inventory of new and used resistance welding equipment, including TECNA spot weld guns at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

QUOTE REQUESTSpecifications

Please submit the following form to request additional information.

Enter “TECNA-2900” on the following quote request form.

If you have any questions, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs
    Equipment Request:
    TECNA Model / Serial Number:
    * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    ACTUATOR SIZES (6 bar) Ø100 mm
    Welding force Arm Code (Length) Arm Code (Length)
    4921 – 11.81 in. (300 mm) 1144.28 lbs. (509 daN) 4925 – 19.69 in. (500 mm) 762.10 lbs. (339 daN)
    4922 – 13.78 in. (350 mm) 1018.39 lbs. (453 daN) 4926 – 23.62 in. (600 mm) 651.95 lbs. (290 daN)
    4923 – 15.75 in. (400 mm) 914.97 lbs. (407 daN) 4927 – 27.56 in. (700 mm) 571.02 lbs. (254 daN)
    4924 – 17.72 in. (450 mm) 834.04 lbs. (371 daN) – –
    Gun weight 174.17 lbs. (79 kg)
    CYLINDER DIAMETER Ø3.94 in. (Ø100 mm)
    TRANSFORMER TYPE MFDC – 56 kVA – 400V / 50 Hz (39965) MFDC – 90 kVA – 400V / 50 Hz (40090)
    S (1P) 39,600 amps (39.6 kA) 63,600 amps (63.6 kA)
    U (20) 8.4 V 9.9 V
    I (2P) 4,440 amps (4.44 kA) 6,100 amps (6.1 kA)
    U (1N) 500 V / 1000 Hz 500 V / 1000 Hz
    Weight 43.43 lbs. (19.7 kg) 60.19 lbs. (27.3 kg)
    Water cooling 6 – l / min 6 – l / min
