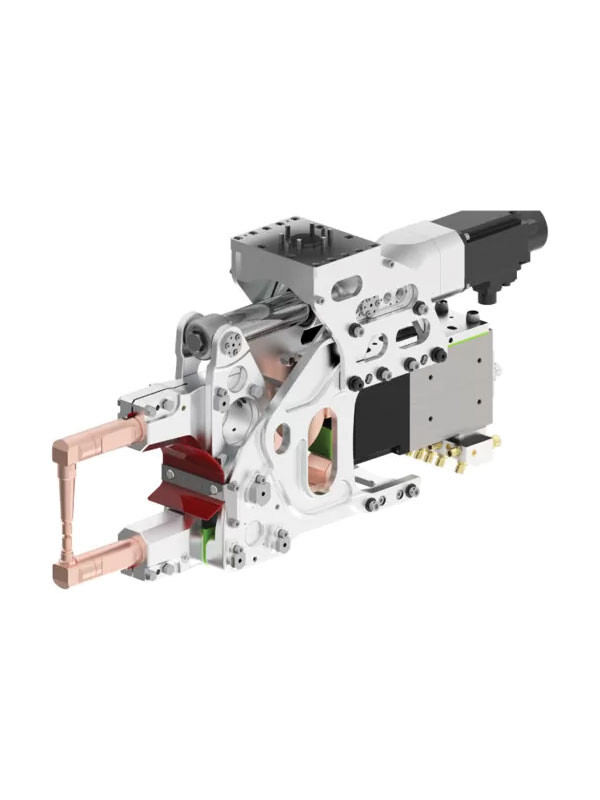

TECNA 2933 Robot Weld Gun
90 kVA | X-Type Light | MFDC
WSI Stock / Serial #: TECNA-2933
The TECNA 2933 is a 90 kVA x-type light MFDC weld gun. The 2933 robot spot welding gun is built strong and light to create a versatile tool with multiple configurations. The 2933 x-type gun is available with 11.81 in. / 17.72 in. / 23.62 in. (300 mm / 450 mm / 600 mm) arms for increased flexibility.
- Model: TECNA 2933
- Gun type: X-type
- Power @ 50% duty cycle: 90 kVA
- Power supply: MFDC
- Max. weld current: 63,600 amps
- Max. weld force: 1348.85 lbs.
- Max. electrode throat depth: 23.62 in.
WSI maintains an inventory of new and used resistance welding equipment, including TECNA spot weld guns at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.
QUOTE REQUESTSpecifications
Please submit the following form to request additional information.
Enter “TECNA-2933” on the following quote request form.
If you have any questions, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.
| GENERAL DATA | ACTUATOR SIZES | ||
|---|---|---|---|
| Welding force | Arm Length | 4.9 Nm | |
| 11.81 in. (300 mm) | 1348.85 lbs. (600 daN) | ||
| 17.72 in. (450 mm) | 1056.60 lbs. (470 daN) | ||
| 23.62 in. (600 mm) | 854.27 lbs. (380 daN) | ||
| Gun weight | 165.13 lbs. (74.9 kg) | ||
| SERVOMOTOR SPEED | 3000 rpm | ||
| TRANSFORMER TYPE | MFDC – 90 kVA – 400V / 50 Hz | MFDC – 90 kVA – 480V / 60 Hz | |
| S (1P) | 63,600 amps (63.6 kA) | 63,600 amps (63.6 kA) | |
| U (20) | 9.1 V | 9.1 V | |
| I (2P) | 6000 amps (6 kA) | 6000 amps (6 kA) | |
| U (1N) | 500 V / 1000 Hz | 635 V / 1000 Hz | |
| Weight | 35.27 lbs. (16 kg) | 35.27 lbs. (16 kg) | |
| Water cooling | 4 – l / min | 4 – l / min | |
