TECNA 2135D AC – 100 kVA

TECNA 2135D Bench Welder

100 kVA | Air-Operated | Single-Phase AC Spot Welder

844-44-TECNA
216-475-5629
EMAIL
QUOTE

WSI Stock / Serial #: TECNA-2135D

The TECNA 2135D is a 100 kVA, air-operated, single-phase AC bench welder, perfect for small assembly spot welding applications. The TECNA 2135D bench welder features a water-cooled transformer, electrode holders, and electrodes. TECNA bench welders can be configured with part-holding fixtures or small seam welding heads.

  • Model: TECNA 2135D
  • Power @ 50% duty cycle:  100 kVA
  • Power supply:  Single-phase AC
  • Max. weld current: 27,200 amps
  • Max. weld force: 1,654 lbs.
  • Max. electrode throat depth: 11.02 in. (280 mm)
  • Max. projection plate throat depth: —

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

QUOTE REQUESTFeaturesSpecifications

Please submit the following form to request additional information.

Enter “TECNA-2135D” on the following quote request form.

If you have any questions, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs
    Equipment Request:
    TECNA Model / Serial Number:
    * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    • Built-in compressed air filter unit.
    • Electrodes speed control valves, shock absorbers for the end of the stroke, and air discharge silencers ensure the minimum noise.
    • Lubrication-free pneumatic components to eliminate oil mist and protect the environment.
    • Cylinder with chrome plated stem for heavy-duty work and long life; adjustable anti-rotation device.
    • Cylinder with double stroke with key control.
    • Water-cooled transformer, plates, electrode-holders and electrodes.
    • Transformer with epoxy resin-coated windings.
    • TE550 constant current microprocessor control unit.Phase shift welding current adjustment. Synchronous SCR contactor insulated from
    • cooling water circuit with protection thermostat.
    • Two-stage electric foot control for clamping and welding pieces only if correctly positioned. The foot control is standard on spot welder models only (on request on projection models).
    • Pre-setting for additional double-stage electric foot connection for the direct recalling of welding program no.2.
    • Two-hand safety control with timer for maximum safety, and removable key selector, standard on all models. The push buttons of the two-hand control are standard on projection models only (on request on spot welder models).

    * Different voltages and frequencies on request. Specifications are subject to change without notice.

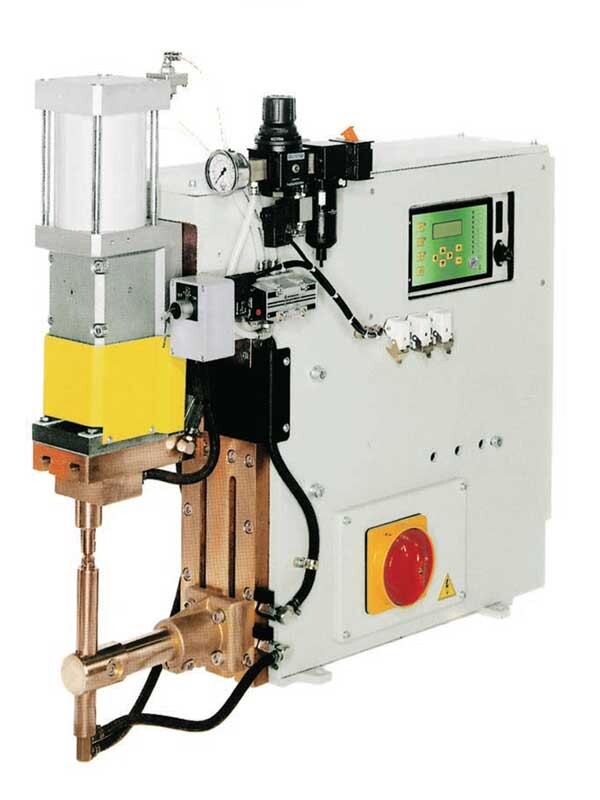

    TECNA 2121D- 2123D - 2125D Spot Bench Welder
    QUOTE REQUEST

    The TECNA 2135D is a 100 kVA, air-operated, single-phase AC bench welder, perfect for small assembly spot welding applications. The TECNA 2135D bench welder features a water-cooled transformer, electrode holders, and electrodes. TECNA bench welders can be configured with part-holding fixtures or small seam welding heads.

    • Model: TECNA 2135D
    • Power @ 50% duty cycle:  100 kVA
    • Power supply:  Single-phase AC
    • Max. weld current: 27,200 amps
    • Max. weld force: 1,654 lbs.
    • Max. electrode throat depth: 11.02 in. (280 mm)
    • Max. projection plate throat depth: —

    INVENTORY:

    Additional information

    kVA

    100 kVA
    Power Supply

    Single-Phase AC
    Max. Weld Current

    35,200 amps
    Max. Weld Force

    1,654 lbs.
    Max. Electrode Throat Depth

    11.02 in.
    Max. Projection Plate Throat-Depth

    —

    TECNA Stainless Steel Cable Retractor Balancer Standard Features

    • Rugged construction, cast aluminum body.
    • Stainless steel rope
    • Adjustable capacity
    • Auxiliary safety suspension
    • Adjustable stroke limiting device
    • Cable guide in antifriction material
    • Inert spring drum assembly
    • Polyamides thimble
    • Models 9320 – 9323: Safety device against load dropping due to the spring breakage (>3kg).

    * Features may vary, and are subject to change without notice. Please contact your TECNA representative to request a quote.

    TECNA Stainless Steel Cable Retractor Balancer Selection Guide

    Retractor tool balancers use a spring mechanism to keep the tool hanging slightly below the balancer when in the rest position. To use the tool, the operator pulls down to unwind a cable. When the operator’s task is complete, the tool can again be safely returned to the rest position. While in use, the operator will feel a slight pull from the retractor, as the tool is under continuous pressure from a spring.

    TECNA standard retractor tool balancers feature a nylon or aluminum housing, and suspend the tool on a stainless steel wire rope. Optional accessories include:

    • Accessory unit with air hose 0.32 / 0.39 in. (8 – 10 mm)
    • Accessory unit with air hose 0.43 / 0.63 in. (11 – 16 mm)

    NOTE:  Available for certain models, please contact a customer service representative for help selecting the right product for your application.

    Balancers models 9336 – 9350 are equipped with a stop device that allows the load to be stopped in intermediate positions of the stroke, about every 3.94 in. (100 mm). The stop device can be activated and deactivated at the operator’s choice.
