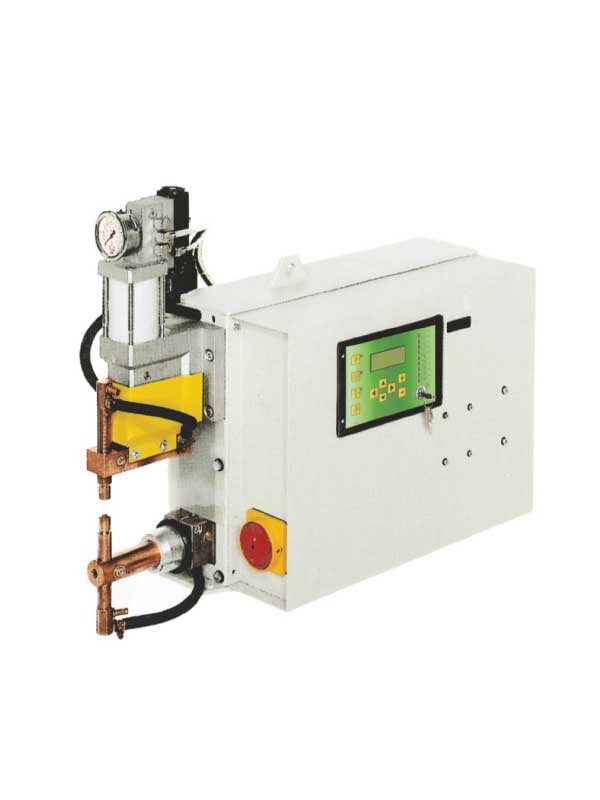

TECNA 2101D Bench Welder

16 kVA | Air-Operated | Single-Phase AC

WSI Stock / Serial #: TECNA-2101D

The TECNA 2101D is a 16 kVA, air-operated, single-phase AC bench welder, perfect for small assembly spot and projection welding applications. The TECNA 2101D bench welder features a water-cooled transformer, electrode holders, and electrodes. TECNA bench welders can be configured with part-holding fixtures or small seam welding heads.

  • Model: TECNA 2101D
  • Power @ 50% duty cycle:  16 kVA
  • Power supply:  Single-phase AC
  • Max. weld current: 13,200 amps
  • Max. weld force: 420 lbs.
  • Max. electrode throat depth: 11.02 in. (280 mm)
  • Max. projection plate throat depth: —

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

QUOTE REQUESTFeaturesSpecifications

Please submit the following form to request additional information.

Enter “TECNA-2101D” on the following quote request form.

If you have any questions, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    Country:
    * Phone:
    * Email:
    * Preferred way to be contacted:
    Equipment Needs
    Equipment Request:
    TECNA Model / Serial Number:
    * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    • Built-in compressed air filter unit.
    • Lubrication-free pneumatic components to eliminate oil mist and protect the environment.
    • Chrome-plated cylinder and stem for heavy-duty works and long life; adjustable anti-rotation device.
    • Water-cooled transformer, electrode-holders, and electrodes; transformer with epoxy resin coated windings.
    • Phase shift welding current adjustment. Synchronous SCR contactor insulated from cooling water circuit with protection thermostat.
    • Items 2101N and 2103N: TE550 constant current control unit.
    • Item 2102N: TE101 control unit.
    • Two-stage electric foot control for clamping and welding pieces only if correctly positioned.
    • Pre-setting for two-hand safety control with timer for maximum safety, and removable key selector (only on items 2101N and 2103N). The push buttons are available on request.

    * Different voltages and frequencies on request. Specifications are subject to change without notice.
